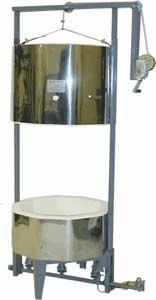

Olympic Model 23 Raku Kiln [SHIPS MFG]

Inside WxD (inches)	Cu. Ft.	Outside WxD (inches)	Cone/Max Temp	BTU/ Burner x 1000	BTU/HR Total	Gas	# of Burners/Pipe Line Size	# of Gallons per Cone 10 Firing	Orifice Size LP/NG
23 3/8x27	7	43x78	10/2350°F	80	240,000	LP/NG	3 / 3/4"	7	#40  9/64

Ship Wt. Lbs.	Built with 3" Brick	Furniture Kit	Add'l Wt. w/Kit Lbs.
320	No	Six 19"x9"x1" half shelves, 6 ea - 3, 6, 9, 12 inch posts, 1 lb. bag kiln wash, gloves	91

23 Raku with optional Ignition System and Thermocouple Safety Shut-off
Model - 23 Raku/optional IGN Syst/Propane or Natural Gas
Inside dimensions: 23 3/8 " wide x 27" deep, fires to cone 10/2350°F

Model comes with frame welded to firing chamber, three peephole plugs, brick for covering porthole on top during reduction, instruction manual, and warranty card. The ignition system with thermocouple safety shut-off is an option and the kiln may be purchased as a Base kiln.

One-year warranty.

**Note: For large or heavy orders that weigh 150 lbs. we will advise you of the approximate freight cost. You will not be charged until we verify shipping costs with you.**

Please allow 22-28 weeks for delivery.
Shipping weight is an estimate only and may fluctuate by 10%.
