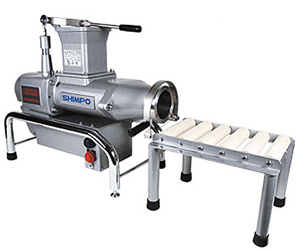

Shimpo NRA-04 Pug Mill [SHIPS MFG]

Free Shipping on Shimpo Pugmills within the Continental United States.

Motor	Extruding Capacity	Nozzle Diameter	Hopper Size	Dimensions	NRA-04 Ship Wt.	NRA-04S Ship Wt.
1/4 hp, 200W, 115 VAC, 60 Hz, Single Phase	880 lbs/hour	3-1/2" diameter	3-1/2"x3-1/2"	25-1/2"x12"x22-1/2"	210 lbs.	232 lbs.

This pug mill features newly designed twin augers and a forceful direct gear driven motor. The high quality wedging and extruding capacity obtained makes this compact pug mill one of the most efficient and competitive on the market.

NRA-04 / NRA-04S Pug Mill Features:

Non-de-airing model - No Vacuum Pump Forceful Direct Gear Driven Motor—Provides maximum mechanical force for blending requiring minimum operator effort High Extruding Capacity—Twin stainless steel mixing augers blend and extrude up to 620 lbs/hour High Quality Wedging Function—Newly designed twin augers, typically found only in large industrial machines, increases wedging capacity and produces practically air-free clay without a vacuum Dual Safety System—Safety limit switch automatically cuts power to pugmill when augers are exposed. Stop button allows for immediate operator control Compact Design—Removable aluminum or stainless steel case allows for easy access to mixing chamber for fast and easy clean-up and maintenance Comes with Cut Off Wire & Clay Receiving Table With Rollers—Allowing for easy bagging of extruded clay Five-Year Warranty—Peace of mind

* Note: Shipped directly from the manufacturer. May take 8-12 weeks for delivery. Shipment of these items is not available to all zip codes. May require additional shipping fees.

**Note: For large or heavy orders that weigh 150 lbs. or more, we will advise you of the approximate freight cost. You will not be charged until we verify shipping costs with you.**
