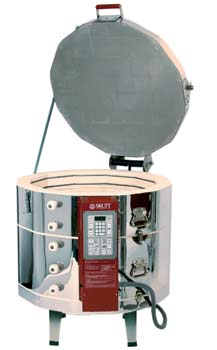

Home > Kilns > Skutt Model KM-1022-3 Electric Kiln
For easy loading of heavy or fragile pieces, the KM1022 was introduced to combine the benefits of the easy to load KM1018 and the desirable height of the KM1027. 3 inch brick.
Product Details
| Inside Width (inches) |
Inside Depth (inches) |
Cu. Ft. |
Cone / Max Temp 240/208 1 Phase |
Cone / Max Temp 3 Phase |
Amps 1 Phase |
Amps 240/208 3 Phase |
Volts |
Watts 240/208 1 Phase |
Watts 240/208 3 Phase |
Breaker Req. 1 Phase |
Breaker Req. 3 Phase |
| 22.5 |
22.5 |
5.25 |
10/2350°F |
10/2350°F |
48 |
34.6 |
240/208 |
11,520/9,984 |
11,520/11,520 |
60 |
50 |
NEMA Receptacle Config.
Single Phase/Three Phase |
Ship Wt. Lbs. |
Furniture Kit |
Add'l Wt. w/Kit Lbs. |
| 6-50 / 15-50 |
298 |
Shelves: Six 10.5" x 22" half dec. shelves 5/8"
Posts: (12) 1-1/2" Sq. x
1", (8) 1-1/2" Sq. x 2", (8) 1-1/2" Sq. x 4", (8) 1-1/2" Sq. x 6" |
72 |
Even-firing powerhouse.
Part of the New 22" Series, the KM1022 was introduced to combine the benefits of the easy to
load KM1018 and the desirable height of the KM1027. At 22” deep, it has a chamber that is 4.5"
taller than the KM1018. This makes it possible to fire an 18" tall vase with all the proper
clearances. It comes equipped with the precise control of the KilnMaster Controller making it
easy and convenient to operate. Like all other Skutt 10 sided kilns, the spring-loaded Lid
Lifter is included at no extra charge.
Comes standard with Skutt Lid Lifter.
**Note: For large or heavy orders that
weigh 150 lbs. we will advise you of the approximate freight cost. You will not be charged
until we verify shipping costs with you.**
Please allow 8-10 weeks for delivery.
|
|
